Model:

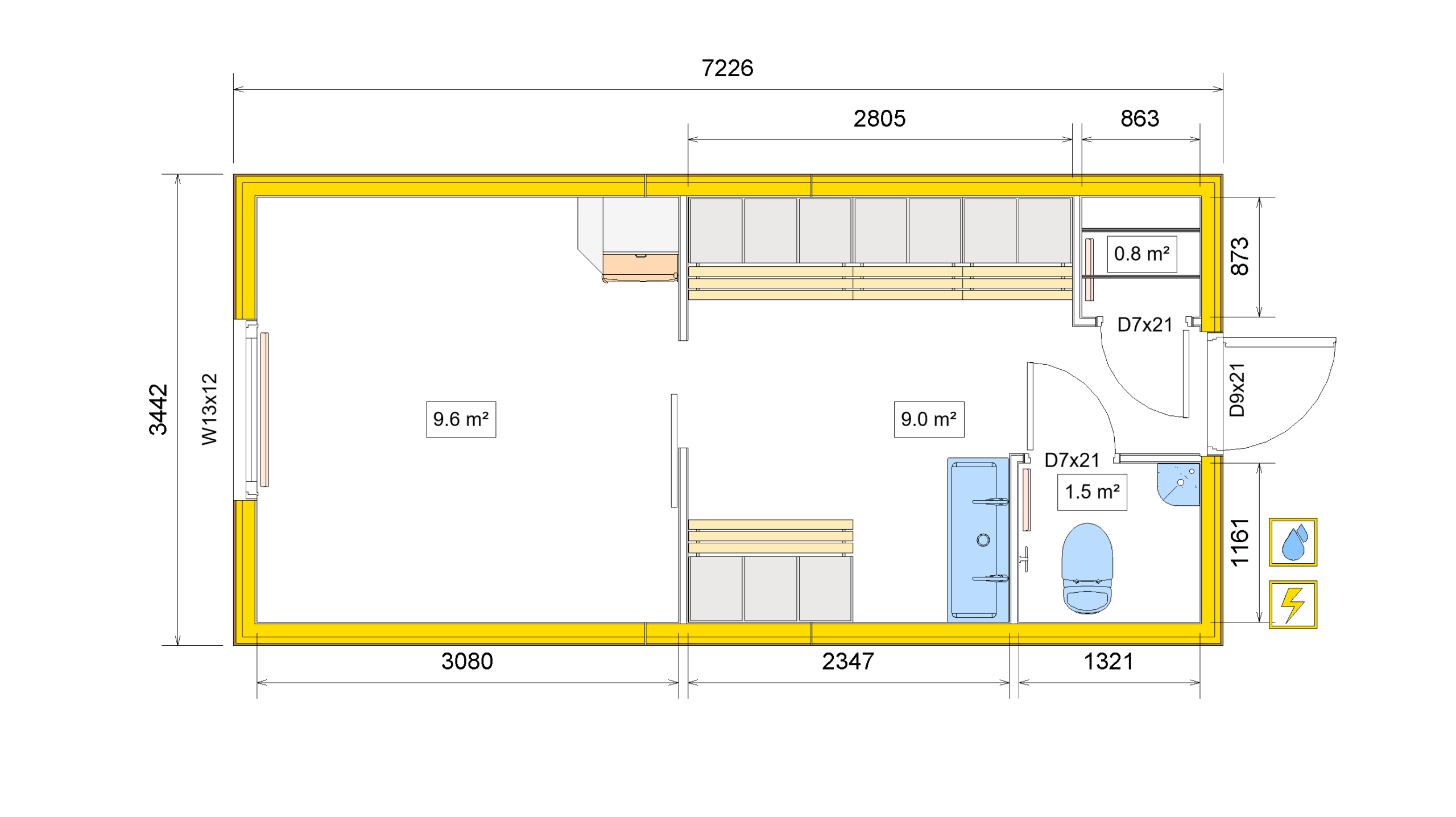

Key Features:
- Break room with a small refrigerator
- Partition wall with sliding door
- Metal lockers (10 persons)
- Drying room (wall-mounted rods with a total of 12 two-armed hooks)
- Toilet
- Double-sink
Specifications:
| Function Category | Dining, Entrance, Manpower, Sanitary |
|---|---|
| External Dimensions (L x W x H) | 7226 x 3442 x 3000 |
| Internal Dimensions (L x W x H) | 6886 x 3102 x 2400 |
| U-value, Floor, W/m²K | 0.26 W/m²K |
| U-value, Roof, W/m²K | 0.21 W/m²K |
| U-value, External wall, W/m²K | 0.26 W/m²K |
| U-value, Window, W/m²K | 1.3 W/m²K |
| Fire Rating | REI30 |
| Weight | 4.6 T |
| Lifting | Crane, Forklift |
| Electrical Connection | 32A, 400V |
| Water & Sewage Connection | Water pipe Ø26,9 mm, Sewage pipe Ø110 mm |
| Water Heater | 35L |
| Lighting | LED lighting controlled via motion sensors |
| Heating | Electric Heaters, 150 W/m² |
| Ventilation | Mechanical extraction, Natural ventilation |
| Scheduled Energy Saving | Optional |
| Air Cooling | Optional |
| Sanitary Features | Double-sink, Toilet |
