Model:
Key Features:

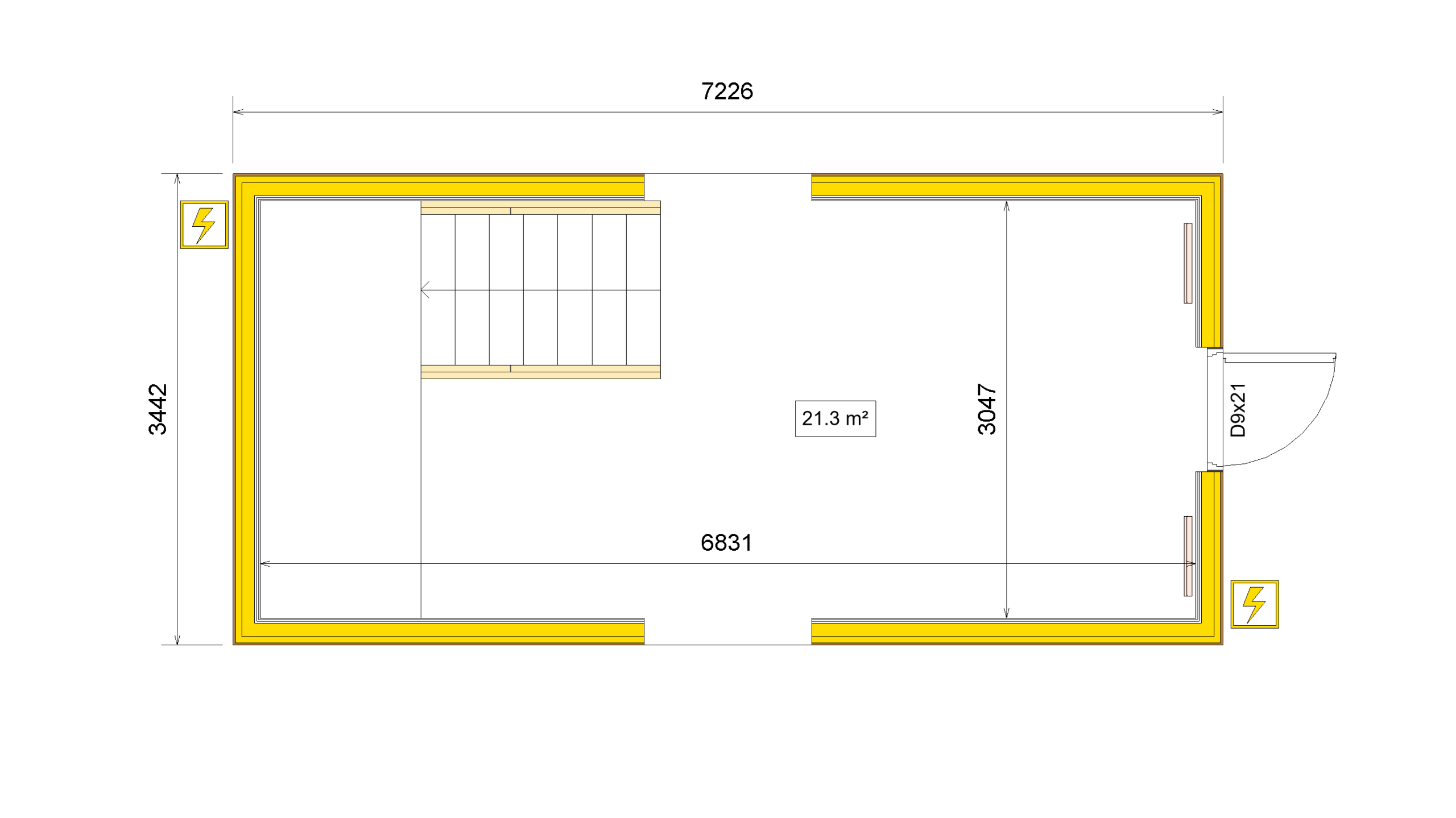

- First floor staircase module
- Focused on fire safety with REI60 structures
- Staircase: wooden structure with PVC covered steps
- Possible to configure layout with removable external or internal wall blocks
Specifications:
| Function Category | Office, Staircase |
|---|---|
| External Dimensions (L x W x H) | 7226 x 3442 x 3000 |
| Internal Dimensions (L x W x H) | 6886 x 3102 x 2400 |
| U-value, Floor, W/m²K | 0.26 W/m²K |
| U-value, Roof, W/m²K | 0.21 W/m²K |
| U-value, External wall, W/m²K | 0.26 W/m²K |
| U-value, Window, W/m²K | 1.3 W/m²K |
| Fire Rating | REI60 |
| Weight | 5.5 T |
| Lifting | Crane, Forklift |
| Electrical Connection | 32A, 400V |
| Lighting | LED lighting controlled via motion sensors |
| Heating | Electric Heaters, 150 W/m² |
| Ventilation | Natural ventilation |
| Scheduled Energy Saving | Optional |
| Air Cooling | Optional |
