Model:
Key Features:

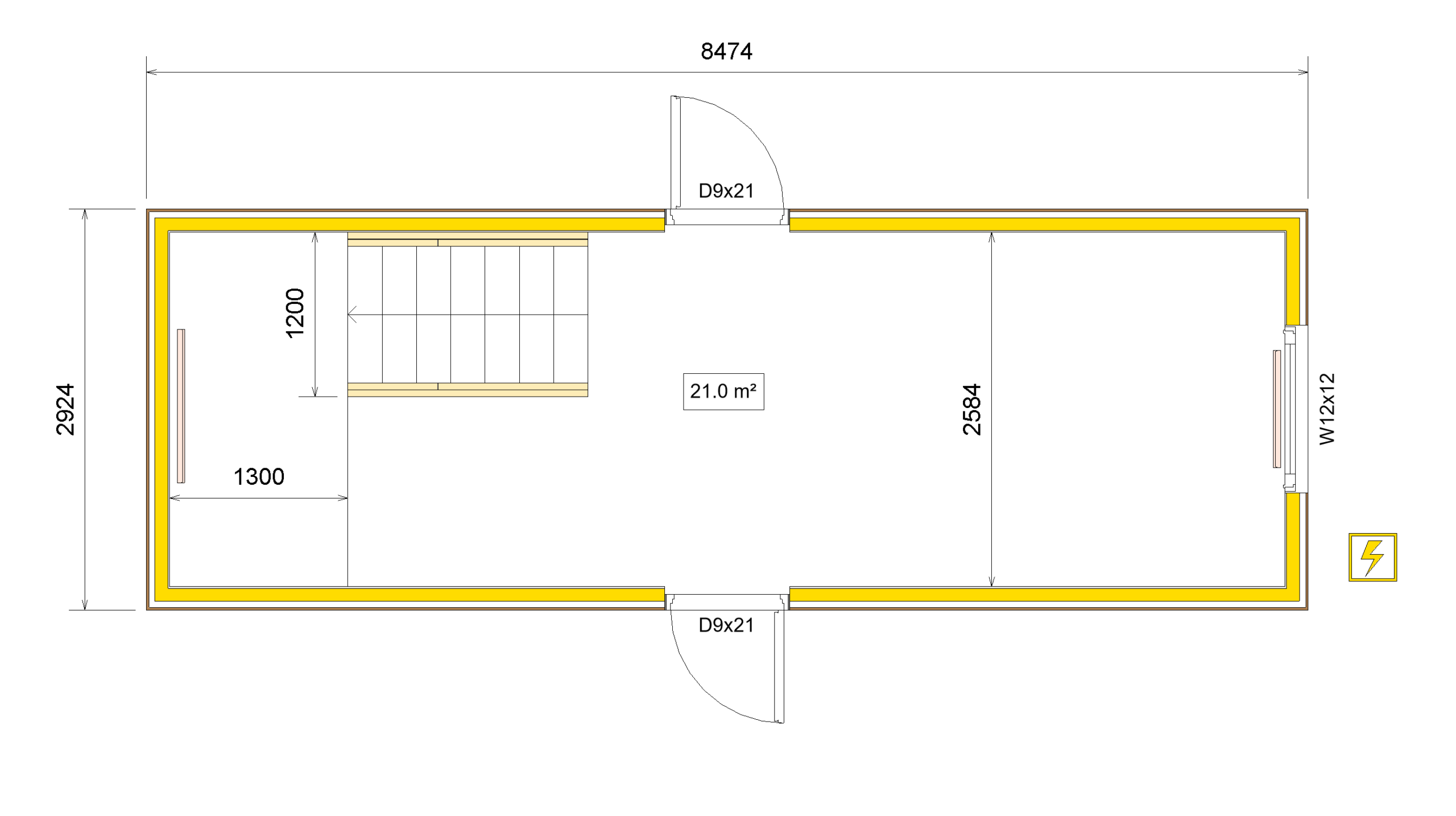

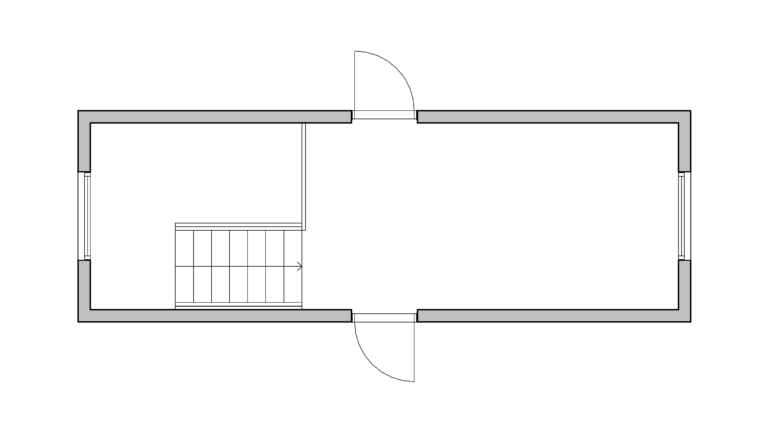

- First storey staircase module to be paired with either C39 or C39A
- Wooden staircase with PVC covered risers
- External door panels are removable to enable module-to-module internal connections
Specifications:
| Function Category | Office, Staircase |
|---|---|
| External Dimensions (L x W x H) | 8474 x 2924 x 3000 |
| Internal Dimensions (L x W x H) | 8134 x 2584 x 2400 |
| Fire Rating | REI15 |
| Weight | 4.3 T |
| Lifting | Crane, Forklift |
| U-value, Floor, W/m²K | 0.26 W/m²K |
| U-value, Roof, W/m²K | 0.26 W/m²K |
| U-value, External wall, W/m²K | 0.35 W/m²K |
| U-value, Window, W/m²K | 1.3 W/m²K |
| Electrical Connection | 32A, 400V |
| Lighting | LED lighting controlled via switches |
| Heating | Electric Heaters, 100 W/m² |
| Ventilation | Natural ventilation |
| Scheduled Energy Saving | Optional |
| Air Cooling | Optional |
