Model:
Key Features:
- Kitchen cupboards, sink & appliances
- Appliances options: H=180cm refrigerators, dishwasher, microwave ovens, cooktop, vent hood
- Open sides connectable with neighbouring modules to create a spacious area
- Add demountable partition walls to further customize the layout according to your needs
- External door panels are removable to enable module-to-module internal connections
Specifications:
| Function Category | Dining, Office |
|---|---|

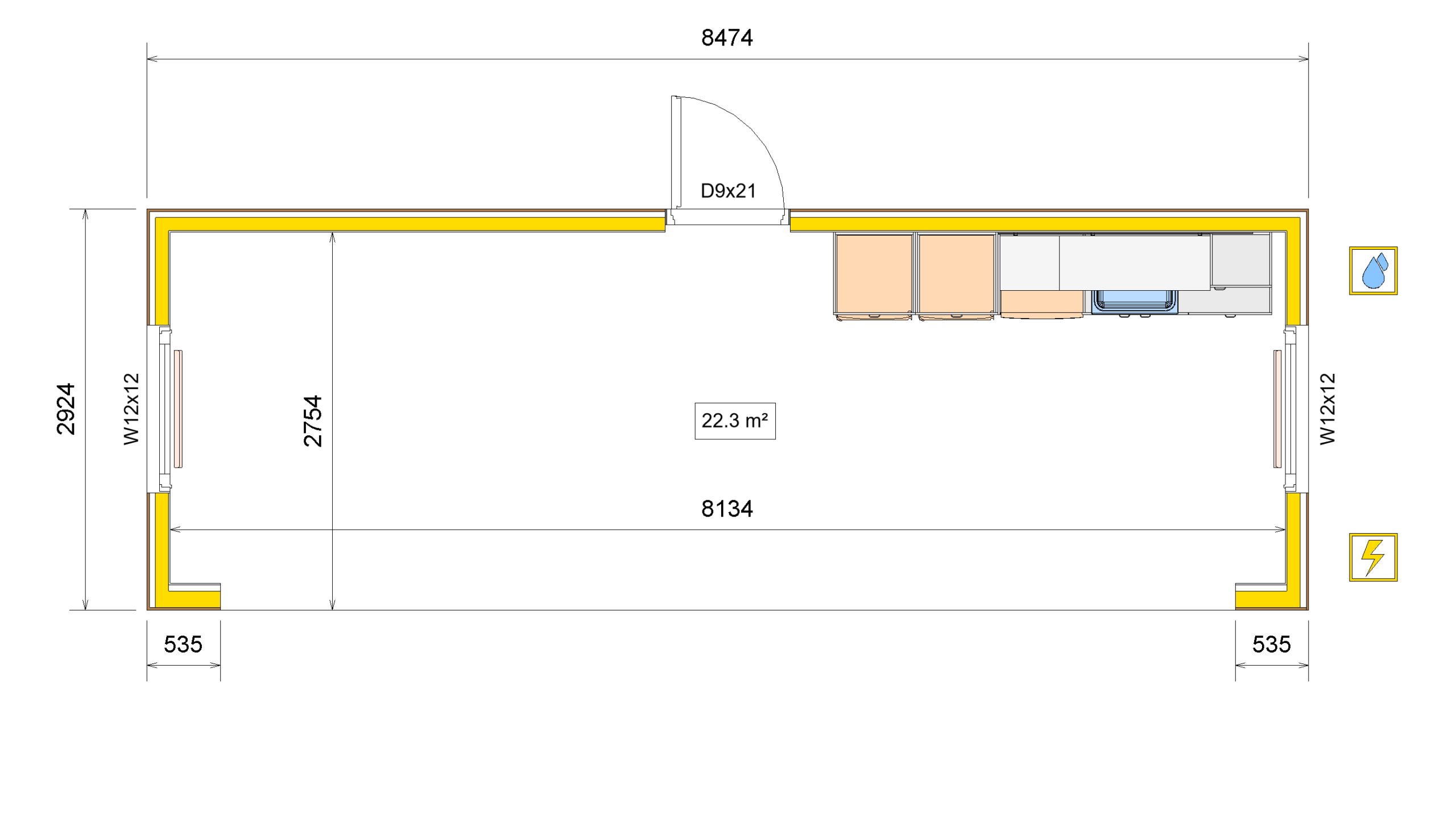

| External Dimensions (L x W x H) | 8474 x 2924 x 3000 |
| Internal Dimensions (L x W x H) | 8134 x 2584 x 2400 |
| Fire Rating | REI15 |
| Weight | 4.0 T |
| Lifting | Crane, Forklift |
| U-value, Floor, W/m²K | 0.26 W/m²K |
| U-value, Roof, W/m²K | 0.26 W/m²K |
| U-value, External wall, W/m²K | 0.35 W/m²K |
| U-value, Window, W/m²K | 1.3 W/m²K |
| Electrical Connection | 32A, 400V |
| Water & Sewage Connection | Water pipe Ø26,9 mm, Sewage pipe Ø110 mm |
| Water Heater | 10L |
| Lighting | LED lighting controlled via switches |
| Heating | Electric Heaters, 100 W/m² |
| Ventilation | Natural ventilation |
| Scheduled Energy Saving | Optional |
| Air Cooling | Optional |
